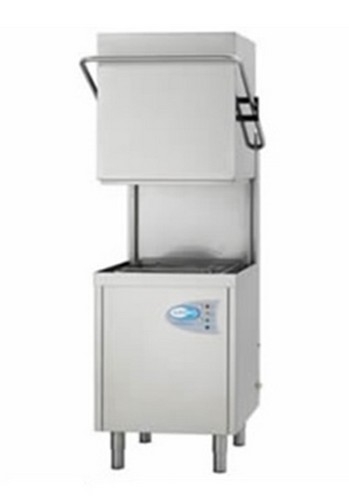

Classeq Hydro 857 Passthrough Dishwasher
The Classeq Hydro 857 is a high volume passthrough dishwasher capable of washing 720 plates per per hour. Designed for straight through or corner operation the Classeq H857 can fit to your needs. The Classeq H857 passthrouh dishwasher is fitted with electro mechanical parts making it very reliable and easy to repair. The Classeq Hydro 857 has been designed with a low capacity (39 litre) wash tank, this reduces water & energy consumption which lowers running costs. Drain pumps are fitted as standard on all the Classeq passthrough dishwasher ranges with an optional WRAS approved break tank, detergent pump & integral water softener
Model Hydro 857 Standard model with drain pump
Model Hydro 857Det With detergent pump
Model Hydro 857A With air break tank
Model Hydro 857A Det With break tank & detergent pump
Model Hydro 857A Det WS With break tank, detergent pump & internal water softener
| Dimensions | |
| Width | 630mm |
| Depth | 720mm |
| Height | 1520mm |
| Internal Clearance | 385mm |
| Max dran pump height | 600mm |
| Technical | |
| Max/Min water pressure | 6 / 1 bar |
| Req water pressure flow | 2 bar |
| Water Connection | 3/4" BSP |
| Total electrical load | 6.9kw |
| Wash tank temp | 55 deg C |
| Rinse tank temp | 80 deg C |
| Wash tank capacity | 39 litre |
| Rinse tank capacity | 7.5 litres |
| Water consumption per cycle | 3.25 litres approx |
